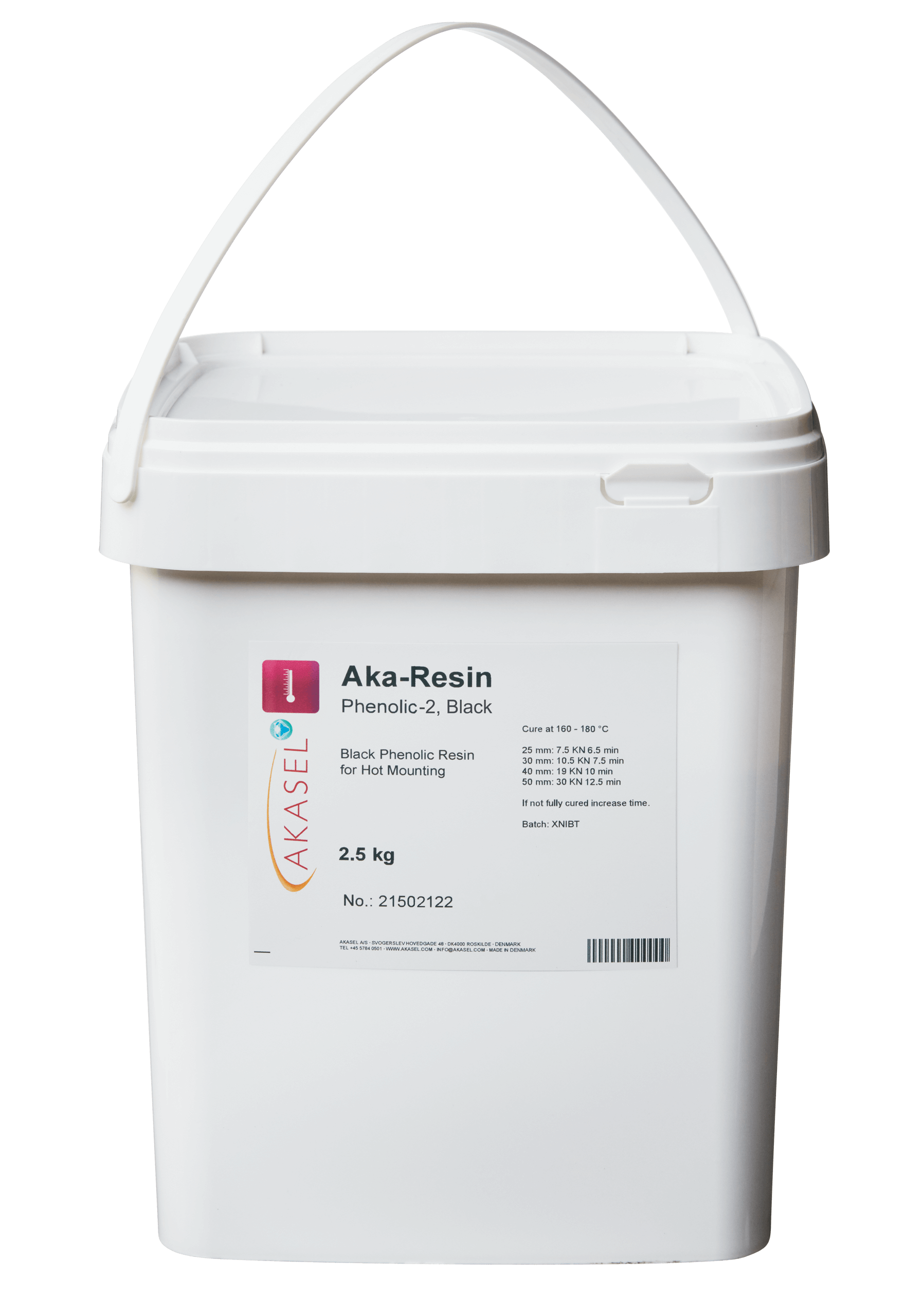

Akasel Aka-Resin Phenolic-2, Black: Black phenolic resin in a white plastic container with a carry handle. The label includes the product name, "Black Phenolic Resin for Hot Mounting", the weight of 2.5 kg, the part number 21502122, and curing details such as: 160–180 °C at 25 mm: 7.5 kN, 6.5 minutes, along with additional force and time specifications for different sample diameters.

Aka-Resin Phenolic-2, Black

Resina fenólica negra para montaje en caliente. La opción de incrustación más económica. Ideal para rellenar cuando se trabaja con resinas más caras como Aka-Resin Epoxy.

Especificaciones de curado
Diámetro, fuerza, tiempo de calentamiento/enfriamiento:
25 mm: 10 kN, 4-5 min/3-4 min
30 mm: 20 kN, 4-6 min/3-4 min
40 mm: 30 kN, 5-7 min/4-6 min
50 mm: 50 kN, 6-9 min/5-7 min

Curado a 160 – 180 °C, 250 bar, alta velocidad de enfriamiento.

Si el soporte no está completamente curado, aumentar el tiempo.

Los parámetros anteriores pueden variar mucho en función de las características de la prensa de montaje utilizada.

Categorías: ,

Descripción

Contenido disponible: 2,5 kg, 7,5 kg, 30 kg (4 x 7,5 kg)

SDS Aka-Resina Fenólica-2, Negro (EN)

Información adicional

Contenido disponible

30 kg (4 x 7,5 kg), 2.5 kg, 7.5 kg

Productos relacionados

  • Akasel Aka-NoStick Powder in a clear plastic bottle with a white screw cap. The label features the product name "Aka-NoStick Powder" and the description "Mould release powder for hot mounting presses." Additional details on the label: Contents 50 g, Item No. 21901105 (8410), made in Denmark. Specially developed for metallographic hot mounting presses to guarantee easy sample release.

    Embutición

    Aka-NoStick Powder

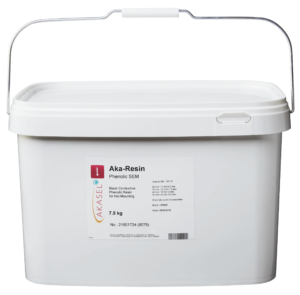

  • Aka-Resin Phenolic SEM – 7.5 kg
