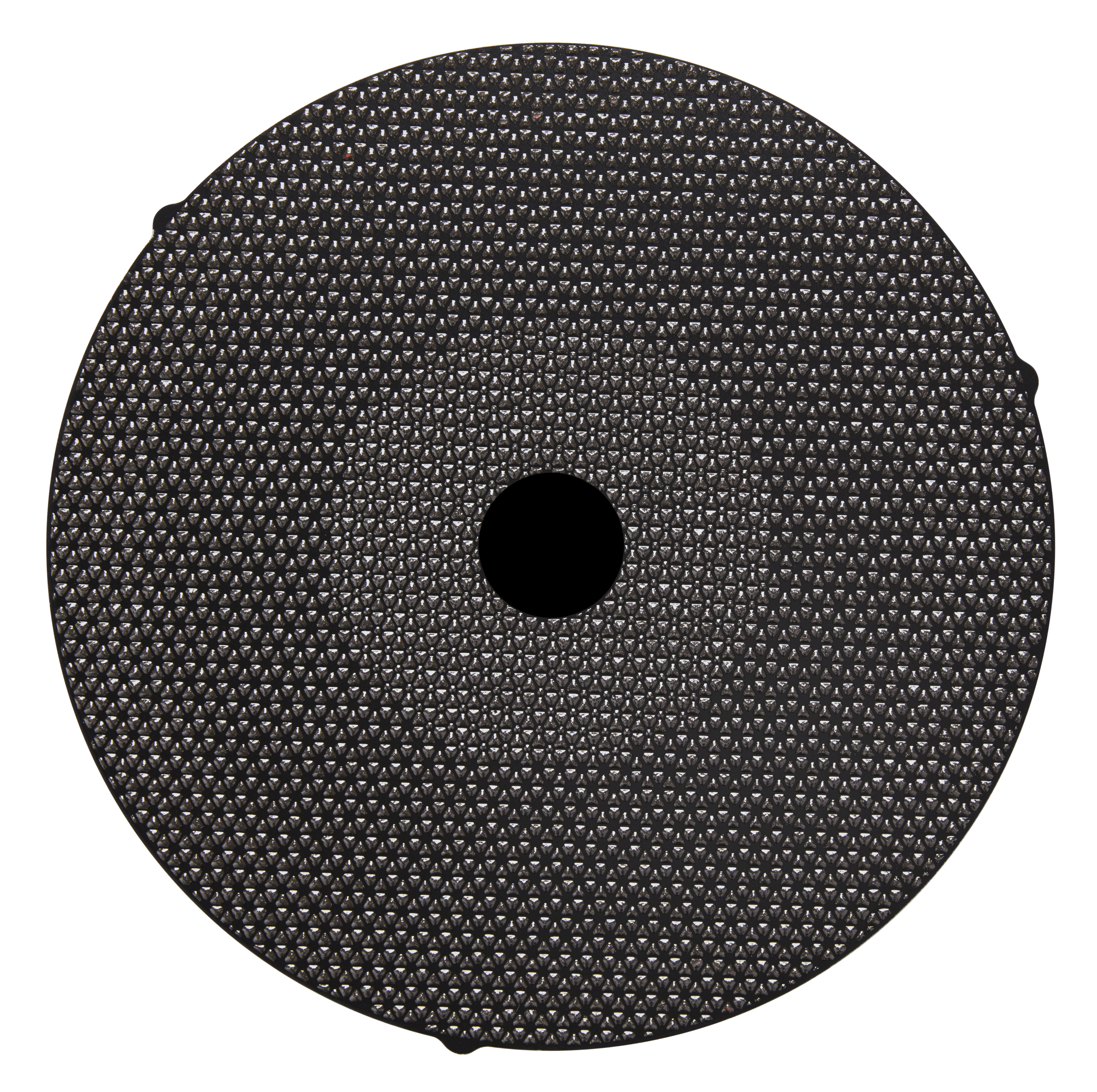

Akasel Aka-Piatto 1200 grinding disc, black with a wear-optimized design and textured surface. Measuring 250 mm in diameter, it is specially designed for metallographic fine grinding at 15 µm, perfect for samples with a hardness of 150 HV – 2000 HV. Excellent for preparing samples for subsequent polishing steps.

Aka-Piatto 1200

Se utiliza para la molienda fina de muestras con una dureza de 150 HV – 2000 HV.

Aka-Piatto 1200/15 µm se utiliza para el esmerilado fino y elimina la deformación creada por un paso de esmerilado plano Aka-Piatto.

Tenga en cuenta que Aka-Piatto+ se recomienda para el esmerilado fino de muestras quebradizas como cerámicas, cermets o carburos sinterizados.

Tras el esmerilado fino de las muestras con un Aka-Piatto 1200/15 µm, se preparan para un paso de pulido con diamantes de 3 µm.

Categorías: , ,

Descripción

Tamaño disponible: 200 mm, 250 mm, 300 mm, 350 mm

Cantidad disponible: 1 unidad

Aka-Piatto y Piatto+ Guías del usuario

Aka-Piatto, Discos de amolar Folletos del producto

PDS Aka-Piatto, Aka-Piatto+ (EN)

Información adicional

Tamaño disponible

200 mm (8 pulgadas), 250 mm (10 pulgadas), 300 mm (12 pulgadas), 350 mm (14 in)
Cantidad disponible

1 ud.
